Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM

Skip image gallery
Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM_1
Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM_2
Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM_1
Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM_2
3 Reviews 3 Reviews

$27.38

Product number icon Product number: NEL965-7
Manufacturer icon Manufacturer: Zubehör
content: 1 Anschlußleitung mit Schalter, 1 Lüsterklemme, 1 Zugentlastung, 6 Quetschverbinder, 7 Holzscheiben, 7 Kerzenhülsen komplett montiert mit ca. 12 cm langen Leitungen, 7 Riffelkerzen 34 Volt
dimensions: Kerzenhülse 6cm x 1,5 cm
Description Product details Reviews Questions about the product
Electric kit for 7-piece candle arch with spout and disk by SEIFFEN.COM

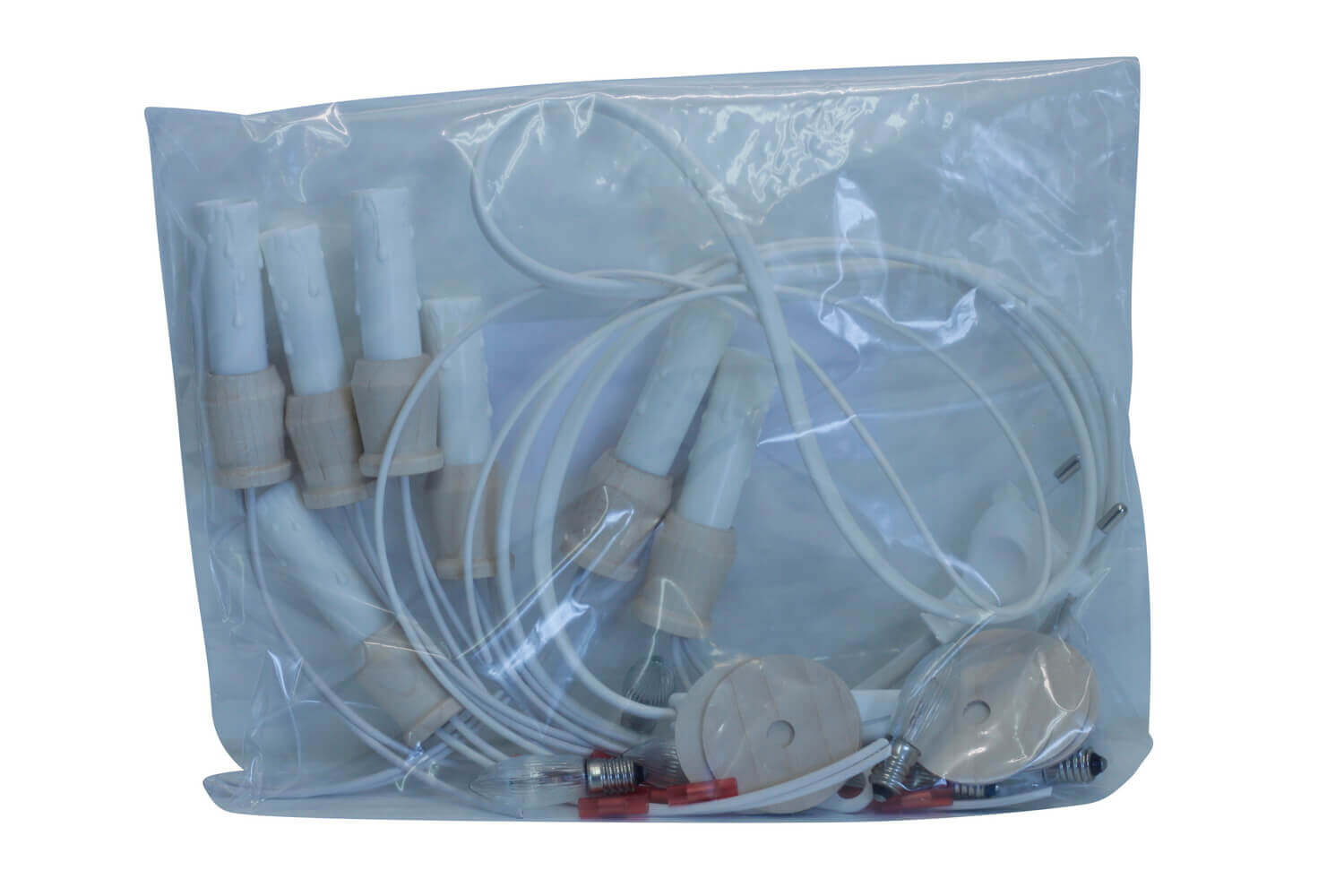

Assembly kit for 7 candle arch, 7 corrugated candles 34 Volt, 1 connecting cable with switch, 1 luster terminal, 1 strain relief, 7 candle sleeves completely assembled with approx.. 12 cm long cables, 6 crimp connectors, 7 wooden discs

Instructions for the component set of a candle arch in series connection

- 7 candles is with 34 V
The main part of the component set are the candle holders, which consist of socket, sleeve, grommet (made of wood), 2-fold insulated wires with approx. 26 cm long contacts and the candle.

This candle holder is then attached to the designated points of the existing arch. The two insulated wires (outer-diameter strand 2.5 mm) are cut in the middle and then cut to the appropriate length. The ends must then be stripped and connected to the wires of the other candle holders in series. This is done either using a parallel connector (included in the component set) or by soldering.
The last two free wires are connected using a luster terminal, which is hidden in the base of the candle arch. One of the two wires must be connected to the enclosed supply cable of approx. 60cm from one side of the candle arch to the chandelier terminal. The connecting cable with switch is also connected to the chandelier terminal. The candles are screwed in and the candle arch is already electrically installed.

Please note, that when soldering the wires, the soldering point must be stripped with heat-shrink tubing (not included in the component set).
In addition, when using LED candles, please note, that only LED candles must be used, as LED candles are not compatible with other candles.

Safety note:
Electrical installations should only be carried out by people with the necessary electrical engineering expertise.   SEIFFEN.COM by Nestler therefore accepts no liability for the installation and use of the component set.

Product details
Manufacturer :
Zubehör
Manufacturer Reference:
SEIFFEN.COM by Nestler GmbH, c/o chg-Leuchten, Hauptstraße 132, 09548 Seiffen, info@seiffen.com
Deep:
4,00 cm
Height:
20,00 cm
Länge:
4,00 cm
USP:
Original SEIFFEN.COM by Nestler!, hobby supplies
Wide:
13,00 cm
content:
1 Anschlußleitung mit Schalter, 1 Lüsterklemme, 1 Zugentlastung, 6 Quetschverbinder, 7 Holzscheiben, 7 Kerzenhülsen komplett montiert mit ca. 12 cm langen Leitungen, 7 Riffelkerzen 34 Volt
country of manufacture:
Germany – Made in Germany
dimensions:
Kerzenhülse 6cm x 1,5 cm
location:
indoor
number of lights:
7
place of origin:
Kurort Seiffen | Erzgebirge
power:
7 Riffelkerzen je 3 W , 7 corrugated candles, 34 V, 3 W
product type:
electrical kit for candle arch
series:
kits for candle arches
Reviews
Review this product
Auszeichnung
Diese Firma kann man nur mit 'aufgezeichnet' bewerten und meine 5 Sterne sind voll gerechtfertigt. Warum ! Die Qualität der bestellten Ware ist sehr gut, was man auch von der schnellen Lieferung sagen kann. Ich war voellig überrascht, als ich nach drei Tagen bereits meine Ware bekommen hatte. Ebenfalls gibt es ein Lob an den Kundenservice. Schnelle Bearbeitung von Problemen/ Fragen und höflicher Umgang mit den Kunden. Ausgezeichnet !!!
Peter Langer am 2025.01.06
Insgesamt netter Kontakt, dennoch Punktabzug wegen Problemen in der Lieferlogistik.
Sehr nützlicher Komplettbausatz mit zügiger Lieferung. Leider zunächst der falsche Bausatz, aber mit rascher Ersatzlieferung auf Kulanz. Hier allerdings ein Element defekt. Deshalb Nachorder unter Zeitverzug.
Kalich am 2021.05.04
Schnelle Lieferung, gute Qualität. Der alte Schwipbogen leuchtet wieder sehr schön.
Schnelle Lieferung, gute Qualität. Der alte Schwipbogen leuchtet wieder sehr schön.
Peter am 2020.11.01
