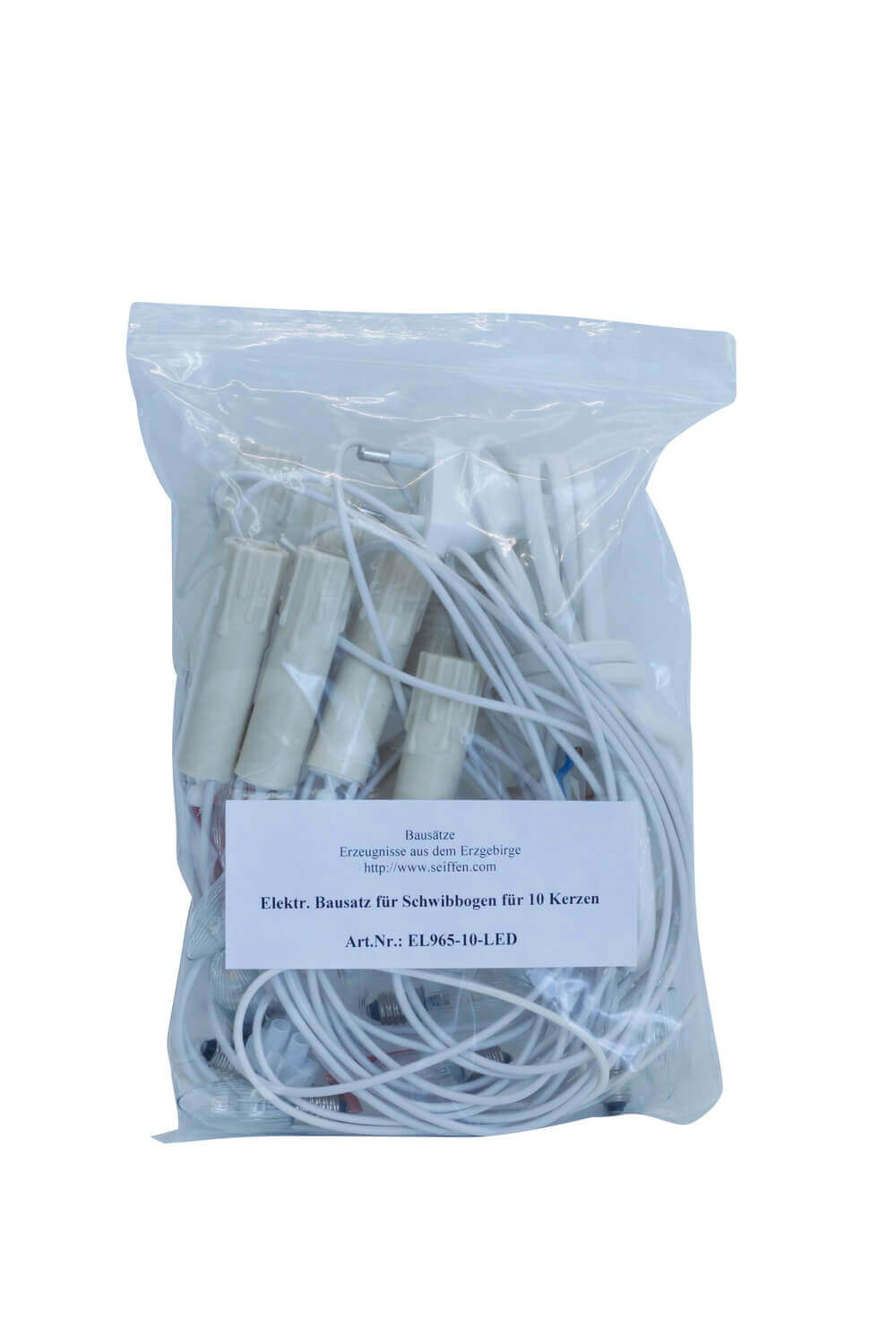

LED electric kit for 10 candle arch

Name: LED electric kit for 10 candle arch
Brand: Zubehör
SKU: EL965-10-LED
Price: 62.23 USD
Availability: LimitedAvailability
Rating: 4.5 (1 reviews)

LED-Elektrobausatz für 10er Schwibbogen_1

1 Review 1 Review

$62.23

Product number: EL965-10-LED

Manufacturer: Zubehör

content: 1 Listerklemme, 10 Kerzenhülsen komplett montiert 26 cm lange Leitungen, 10 Quetschverbinder, 10 Riffelkerzen 10 - 55 V 0,2 W E10, Schalterleitung 1,5 m (weiß)

dimensions: Hülse 60mmx15mm

Kit for 10 candlelight arch including 10 LED - ripple candles

0,2 Watt, 110- 230 V, 1 connection cable with switch, 1 lister terminal, 10 candle sleeves completely mounted with 26 cm long cables, 10 crimp connectors

Instructions for the component set of a Schwibbogen in series connection

- 10 candles LED- candles 0.2 watts, 110- 230 V

The main part of the component set are the candle holders, which consist of socket, sleeve, 2-fold insulated wires with approx. 26 cm long contacts as well as the candle.

This candle socket is then attached to the intended locations of the existing arc. The two insulated wires (outside-diameter strand 2.5 mm) are cut in the middle and then cut to the appropriate length. The ends must then be stripped and connected in series with the wires of the other candle sockets. This is done either by means of parallel connectors (is included in the component set) or by soldering.

The connection of the last two free wires is done with a luster terminal, which is hidden in the base of the Schwibbogen. In doing so, one of the two wires must be connected with the enclosed lead of about. 60 cm from one side of the Schwibbogen to the Lüsterklemme be extended. Furthermore, the connecting cable with switch is again connected to the Lüsterklemme. The candles are screwed in and already the Schwibbogen is electrically installed.

It should be noted, that when soldering the wires, the solder joint must be stripped with heat shrink tubing (is not included in the component set).
In addition, when using LED- candles to pay attention, that then only LED- candles must be used, since LED - candles are not compatible with other candles.

Safety note:

Electrical installations should only be carried out by people with the necessary electrotechnical expertise. Therefore, Nestler-Seiffen.com assumes no liability for the installation and use of the component set.

Manufacturer :

Zubehör

Manufacturer Reference:

SEIFFEN.COM by Nestler GmbH, c/o chg-Leuchten, Hauptstraße 132, 09548 Seiffen, info@seiffen.com

Deep:

4,00 cm

Height:

20,00 cm

Länge:

4,00 cm

USP:

hobby supplies

Wide:

13,00 cm

content:

1 Listerklemme, 10 Kerzenhülsen komplett montiert 26 cm lange Leitungen, 10 Quetschverbinder, 10 Riffelkerzen 10 - 55 V 0,2 W E10, Schalterleitung 1,5 m (weiß)

country of manufacture:

Germany – Made in Germany

dimensions:

Hülse 60mmx15mm

location:

indoor

luminaire color:

warm white

number of lights:

10 Kerzen

place of origin:

Kurort Seiffen | Erzgebirge

power:

10 Riffelkerzen mit 0,2 Watt, 10 corrugated candles, 10–55 V, 0.2 W, E10

product type:

electrical kit for candle arch

series:

kits for candle arches

voltage:

110 - 230 V

Alles ist ausgetauscht, und funktioniert gut

Ohne spezielle Zange können die Verbindungen nicht hergestellt werden.

Kitzi am 2021.10.25
